Tellabs

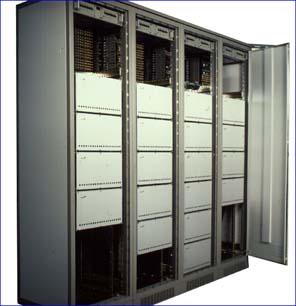

TITAN 532E Digital Cross-Connect System


The manageability, efficiency and quality of virtually any digital transmission network can be enhanced by the Tellabs TITAN 532E 1/0 Digital Cross Connect. In stand-alone applications, it improves the utilisation of switching and transmission capacity and provides greatly enhanced test and monitoring facilities.

TITAN 532E systems have already been proven in operation in over 50 countries around the world. Applications include: the provision of high-quality transmission service, such as digital leased lines; grooming and routing of wideband data, voice and video traffic to make optimum use of transmission capacity; network hubbing; integrated access networks and PDH access for SDH transport networks.

The system provides non-blocking cross-connection of up to 512 PCM digital links, either E1 (2.048 Mbit/s) or DS1 (1.544 Mbit/s), without the need for demultiplexing. It permits the set up of semi-permanent 64kbit/s and nx64kbit/s transmission paths within a matter of seconds, under software control.

Specifications
* Modular Design For Easy Expansion
* Redundant System Architecture For High Reliability
* Up To 512 E1 Or T1 Ports
* Capable Of Fully Transparent Cross-Connections In CCS Mode
